Project 6: Reinforcement Gaming Agent

DQN Model Building

Now that we have successfully built the Spaceship Dodger game and a custom Gym environment, we can move to the next critical step: training the AI agent using a Deep Q-Network (DQN).

Since training an RL agent is unstable when learning from sequential data, we use a Replay Buffer to store past experiences and sample them randomly for training. This helps break correlations and improves learning stability.

import random
import numpy as np
import torch

class ReplayBuffer:
	def __init__(self, capacity):
		self.capacity = capacity
		self.buffer = []
		self.position = 0

	def push(self, state, action, reward, next_state, done):
		if len(self.buffer) < self.capacity:
			self.buffer.append(None)

		self.buffer[self.position] = (state, action, reward, next_state, done)
		self.position = (self.position + 1) % self.capacity

	def sample(self, batch_size):
		batch = random.sample(self.buffer, batch_size)
		states, actions, rewards, next_states, dones = zip(*batch)

		return (
			torch.tensor(np.array(states), dtype=torch.float32).squeeze(1),
			torch.tensor(actions, dtype=torch.int64),
			torch.tensor(rewards, dtype=torch.float32),
			torch.tensor(np.array(next_states), dtype=torch.float32).squeeze(1),
			torch.tensor(dones, dtype=torch.bool)
		)

	def __len__(self):
		return len(self.buffer)

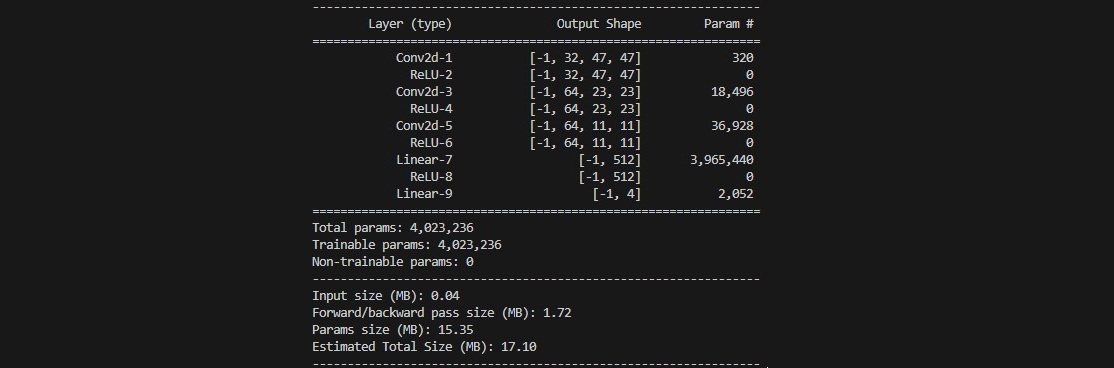

Now, we define the neural network that predicts Q-values for each possible action. The architecture includes 3 convolutional layers, 2 fully connected layers and ReLU activation function:

class DQN(nn.Module):
def __init__(self, input_shape, num_actions):
	super(DQN, self).__init__()

	self.conv = nn.Sequential(
		nn.Conv2d(input_shape[0], 32, kernel_size=3, stride=2),
		nn.ReLU(),
		nn.Conv2d(32, 64, kernel_size=3, stride=2),
		nn.ReLU(),
		nn.Conv2d(64, 64, kernel_size=3, stride=2),
		nn.ReLU(),
	)

	conv_out_size = self._get_conv_out(input_shape)

	self.fc = nn.Sequential(
		nn.Linear(conv_out_size, 512),
		nn.ReLU(),
		nn.Linear(512, num_actions)
	)

def _get_conv_out(self, shape):
	with torch.no_grad():
		return self.conv(torch.zeros(1, *shape)).view(1, -1).size(1)

def forward(self, x):
	x = x.float() / 255.0  # Normalize pixel values
	conv_out = self.conv(x).view(x.size()[0], -1)
	return self.fc(conv_out)


Now we bring everything together in train_dqn.py. Note that this file also includes the parameters for the model training.

Parameter	Value	Explanation	How it works
GAMMA	0.97	Gamma controls how much the agent cares about future rewards. In the Q-learning update, the future reward is multiplied by gamma. So a reward received one step ahead is valued at 0.97 times its actual value, two steps ahead at 0.97², and so on.	If you expect a reward of 100 in one step, its discounted value becomes 100 × 0.97 = 97. In two steps, it would be 100 × 0.97² ≈ 94.09.
Learning Rate or LR (Alpha)	5e-4	The learning rate determines how quickly the neural network updates its weights during training. A small learning rate, like 0.0005, makes sure that updates are gradual, leading to stable learning.	When the network computes the gradient to update weights, each update is scaled by 0.0005. If the gradient suggests a change of 1 unit, the actual change applied is just 0.0005 units.
BATCH_SIZE	128	Batch size is the number of experiences sampled from the replay buffer to update the network in one go. Using 128 samples helps smooth out the learning by providing a robust estimate of the gradient.	Instead of updating your strategy based on one single experience (which can be noisy), you blend 128 experiences together, much like making a smoothie for a richer taste.
MEMORY_SIZE	100000	This is the maximum number of past experiences that the agent can store. The replay buffer allows the agent to learn from a wide variety of experiences, not just the most recent ones.	With a memory size of 100,000, the agent has a huge “memory bank” to pull from, which can be crucial for learning diverse strategies.
EPSILON_START	1.0	Epsilon determines how often the agent takes a random action (exploration) versus relying on its learned policy (exploitation).	Starting at 1.0 means the agent is initially exploring entirely at random, while 0.01 means it rarely takes random actions later on.
EPSILON_END	0.01	Minimum exploration rate after decay.	With an epsilon rate of 0.01 the agent still explores occasionally, even in later stages of training. The higher the number, the more consistant exploration at a later stage.
EPSILON_DECAY	200000	This value indicates the number of steps over which the epsilon value decays from its start value (1.0) to its end value (0.01).	It will take 200000 steps to go from the initial value 1.0 to the end value 0.01.
TARGET_UPDATE	10000	In Deep Q-Networks (DQN), there is a target network used to stabilize training. The target network’s weights are updated with the current network’s weights only every 10,000 steps.	Think of it like syncing your phone with your computer every once in a while rather than constantly—this periodic update helps ensure stability in what the agent is learning.
NUM_EPISODES	3000	Total number of training episodes that the agent runs through during training.	The agent will go through 3000 game sessions if episodes are set to 3000.
MAX_STEPS	10000	Maximum steps allowed per episode. Prevents episodes from running indefinitely, ensuring training efficiency.	Each of the episodes defined is limited by 10'000 steps that the agent can take. Once reached the episode will end.

import os
import json
import torch
import torch.nn as nn
import torch.optim as optim
import numpy as np
import random
from spaceship_env import SpaceshipDodgerEnv
from dqn_model import DQN
from replay_buffer import ReplayBuffer
import matplotlib.pyplot as plt

GAMMA = 0.98
LR = 1e-4
BATCH_SIZE = 64
MEMORY_SIZE = 50000
EPSILON_START = 1.0
EPSILON_END = 0.05
EPSILON_DECAY = 10000
TARGET_UPDATE = 2000
NUM_EPISODES = 500
MAX_STEPS = 5000

device = torch.device("cuda" if torch.cuda.is_available() else "cpu")
print(f"Using device: {device}")

env = SpaceshipDodgerEnv()
dqn = DQN(input_shape=(4, 96, 96), num_actions=4).to(device)
target_dqn = DQN(input_shape=(4, 96, 96), num_actions=4).to(device)
target_dqn.load_state_dict(dqn.state_dict())

optimizer = optim.Adam(dqn.parameters(), lr=LR)
replay_buffer = ReplayBuffer(MEMORY_SIZE)

# Ask the user whether to start from scratch or resume from a checkpoint.
resume_training = input("Do you want to resume training from a checkpoint? (y/n): ").strip().lower()
if resume_training.startswith('y'):
	model_file = input("Enter the model checkpoint filename (e.g., spaceship_dqn.pth): ").strip()
	if os.path.isfile(model_file):
		dqn.load_state_dict(torch.load(model_file, map_location=device))
		print("Model checkpoint loaded successfully!")
	else:
		print("Model file not found. Starting training from scratch.")
	opt_file = input("Enter the optimizer checkpoint filename (or leave blank to skip): ").strip()
	if opt_file and os.path.isfile(opt_file):
		optimizer.load_state_dict(torch.load(opt_file, map_location=device))
		print("Optimizer checkpoint loaded successfully!")
	else:
		print("No optimizer checkpoint loaded. Continuing without it.")
	# Optionally, load additional training state like step_count:
	state_file = input("Enter training state filename (JSON with step_count) (or leave blank to skip): ").strip()
	if state_file and os.path.isfile(state_file):
		with open(state_file, "r") as f:
			training_state = json.load(f)
		step_count = training_state.get("step_count", 0)
		print(f"Resuming with step_count = {step_count}")
	else:
		step_count = 0
		print("No training state loaded. Starting step_count from 0.")
else:
	step_count = 0
	print("Starting training from scratch.")

def get_epsilon(step):
	return EPSILON_END + (EPSILON_START - EPSILON_END) * np.exp(-1.0 * step / EPSILON_DECAY)

for episode in range(NUM_EPISODES):
	state = env.reset()
	state = np.expand_dims(state, axis=0)
	episode_reward = 0

	for t in range(MAX_STEPS):
		step_count += 1
		epsilon = get_epsilon(step_count)

		if episode % 100 == 0:
			env.render()
		else:
			env.render(mode="rgb_array")

		if random.random() < epsilon:
			action = env.action_space.sample()
		else:
			with torch.no_grad():
				state_tensor = torch.tensor(state, dtype=torch.float32, device=device)
				q_values = dqn(state_tensor)
				action = torch.argmax(q_values).item()

		next_state, reward, done, _ = env.step(action)
		next_state = np.expand_dims(next_state, axis=0)
		episode_reward += reward

		replay_buffer.push(state, action, reward, next_state, done)
		state = next_state

		if len(replay_buffer) > BATCH_SIZE:
			states, actions, rewards, next_states, dones = replay_buffer.sample(BATCH_SIZE)
			states = states.to(device)
			actions = actions.to(device).unsqueeze(1)
			rewards = rewards.to(device)
			next_states = next_states.to(device)
			dones = dones.to(device)

			current_q_values = dqn(states).gather(1, actions).squeeze(1)
			next_q_values = target_dqn(next_states).max(1)[0]
			target_q_values = rewards + (1 - dones.float()) * GAMMA * next_q_values

			loss = nn.MSELoss()(current_q_values, target_q_values)
			optimizer.zero_grad()
			loss.backward()
			optimizer.step()

		if step_count % TARGET_UPDATE == 0:
			target_dqn.load_state_dict(dqn.state_dict())

		if done:
			break

	print(f"Episode {episode + 1}/{NUM_EPISODES}, Reward: {episode_reward:.2f}, Epsilon: {epsilon:.3f}")

# Save checkpoints at the end of training.
torch.save(dqn.state_dict(), "spaceship_dqn.pth")
torch.save(optimizer.state_dict(), "optimizer.pth")
# Optionally, save training state such as step_count.
with open("train_state.json", "w") as f:
	json.dump({"step_count": step_count}, f)

env.close()


This code can be used to run the final model and use it to play a game:

import torch
import numpy as np
import matplotlib.pyplot as plt
import cv2
from spaceship_env import SpaceshipDodgerEnv
from dqn_model import DQN

#load the trained model
device = torch.device("cuda" if torch.cuda.is_available() else "cpu")
model = DQN(input_shape=(4, 96, 96), num_actions=4).to(device)
model.load_state_dict(torch.load("models/spaceship_dqn.pth", map_location=device))
model.eval()

env = SpaceshipDodgerEnv()
state = env.reset()
state = np.expand_dims(state, axis=0)

done = False

def visualize_attention(state, q_values):
	attention_map = np.mean(state[0], axis=0)

	plt.clf()
	plt.imshow(attention_map, cmap="jet", alpha=0.7)  #show attention heatmap
	plt.colorbar(label="Importance")
	plt.title(f"Agent Focus - Chosen Action: {np.argmax(q_values.cpu().numpy())}")
	plt.axis("off")
	plt.pause(0.001)

while not done:
	#show the game screen
	env.render()

	state_tensor = torch.tensor(state, dtype=torch.float32, device=device).squeeze(0).unsqueeze(0)

	with torch.no_grad():
		q_values = model(state_tensor)
		action = torch.argmax(q_values).item()

	next_state, _, done, _ = env.step(action)
	next_state = np.expand_dims(next_state, axis=0)

	#show heatmap of what the agent is focusing on
	visualize_attention(state, q_values)

	#update state
	state = next_state

env.close()
plt.show()
